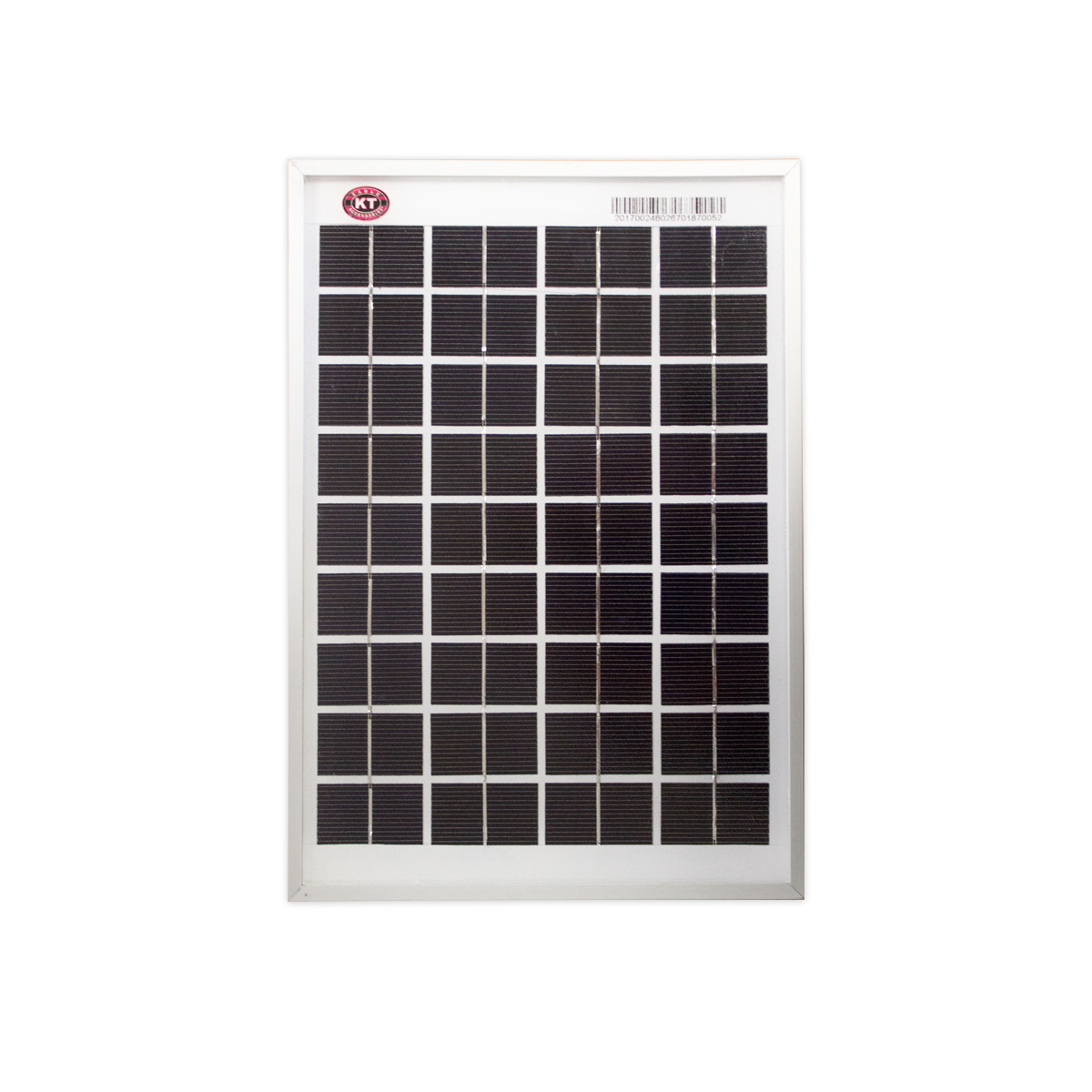

KT Solar – Solar Panel Single Cell 12V 5Watt (KT70714)

Model No. KT70714
Solar Panel 12V Single Cell, 5 Watt

– Dimensions: 267mm H x 187mm W x 17mm D
– 3M positive/negative cables with alligator clamps
– 10 year warranty / 25 year efficiency guarantee
– High quality construction
– Individually barcoded for warranty registration
– 5 Accreditation certificates
– Class A

Brochure: KT70714

Product Code (SKU): kt-solar-KT70714 Category: Solar Panels, Kits, Blankets

Maximum Power (Pmax)	5Wp
Power Tolerance	+3%
Maximum Power Voltage (Vmp)	17.8V
Maximum Power Current (Imp)	0.28A
Rated Voltage	12V
Open Circuit Voltage (Voc)	21.3V
Short Circuit Current (Isc)	0.31A
Operating Temperature	-40oC to +85oC
Product Application	Class A
Max System Voltage	500V DC
Product Weight	0.78Kg
