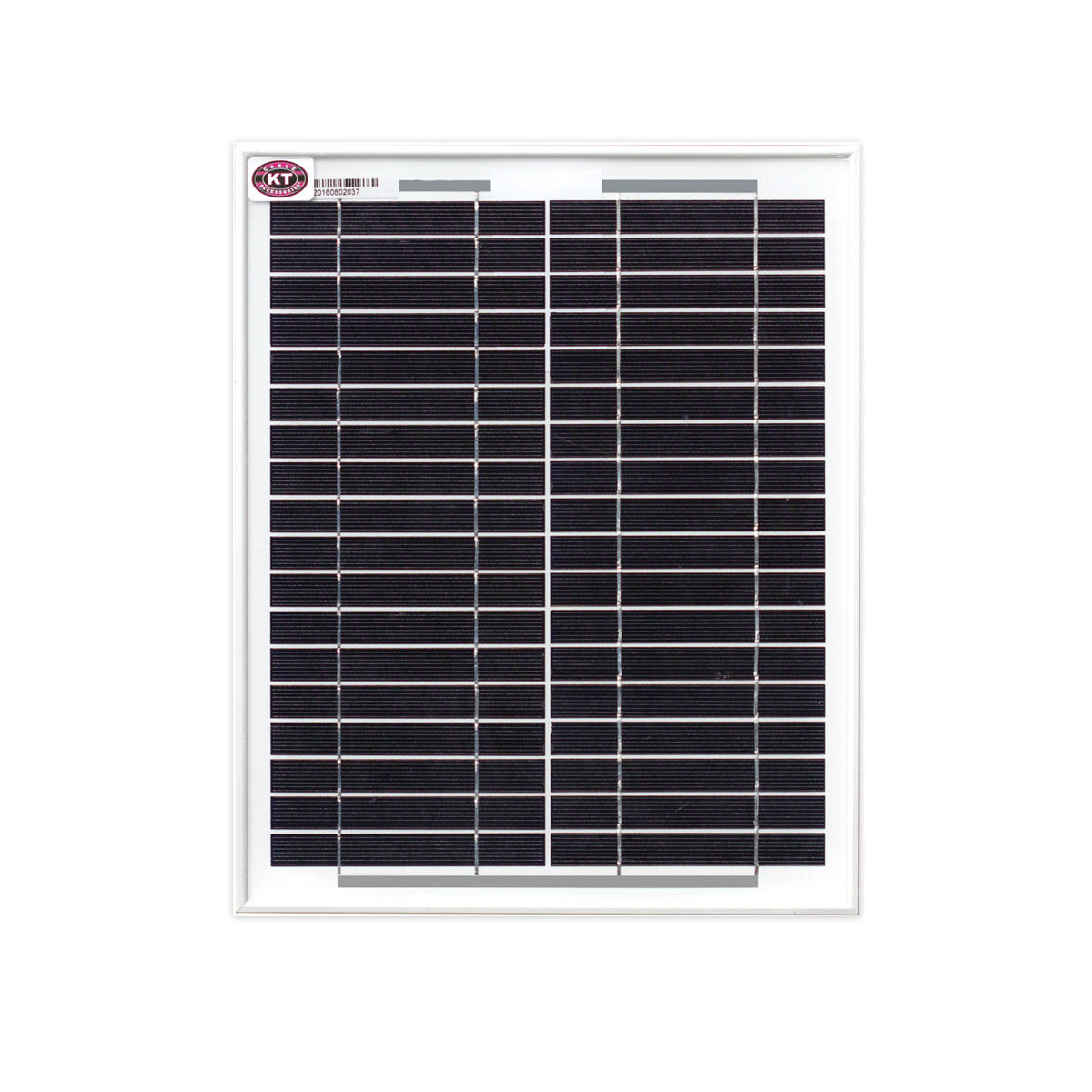

KT Solar – Solar Panel Single Cell 12V 10Watt (KT70715)

Model No. KT70715
Solar Panel 12V Single Cell, 10 Watt

– Dimensions: 365mm H x 240mm W x 17mm D
– 3M positive/negative cables with alligator clamps
– 10 year warranty / 25 year efficiency guarantee
– High quality construction
– Individually barcoded for warranty registration
– 5 Accreditation certificates
– Class A

Brochure: KT70715

Product Code (SKU): kt-solar-KT70715 Category:
Tweet about this on TwitterShare on FacebookGoogle+Pin on PinterestEmail to someonePrint this page
Maximum Power (Pmax) 10Wp
Power Tolerance +3%
Maximum Power Voltage (Vmp) 17.3V
Maximum Power Current (Imp) 0.58A
Rated Voltage 12V
Open Circuit Voltage (Voc) 21.7V
Short Circuit Current (Isc) 0.62A
Operating Temperature -40oC to +85oC
Product Application Class A
Max System Voltage 600V DC
Product Weight 1.0Kg
